Specification :
– Depth of the metal cup 11,3mm
– Cup diameter 35mm
– Opening 175°
– Possibility of door drilling (K) from 3 to 7mm
– Thickness of the door (T) from 16 to 21mm
– Slow motion solutions with linear clamper

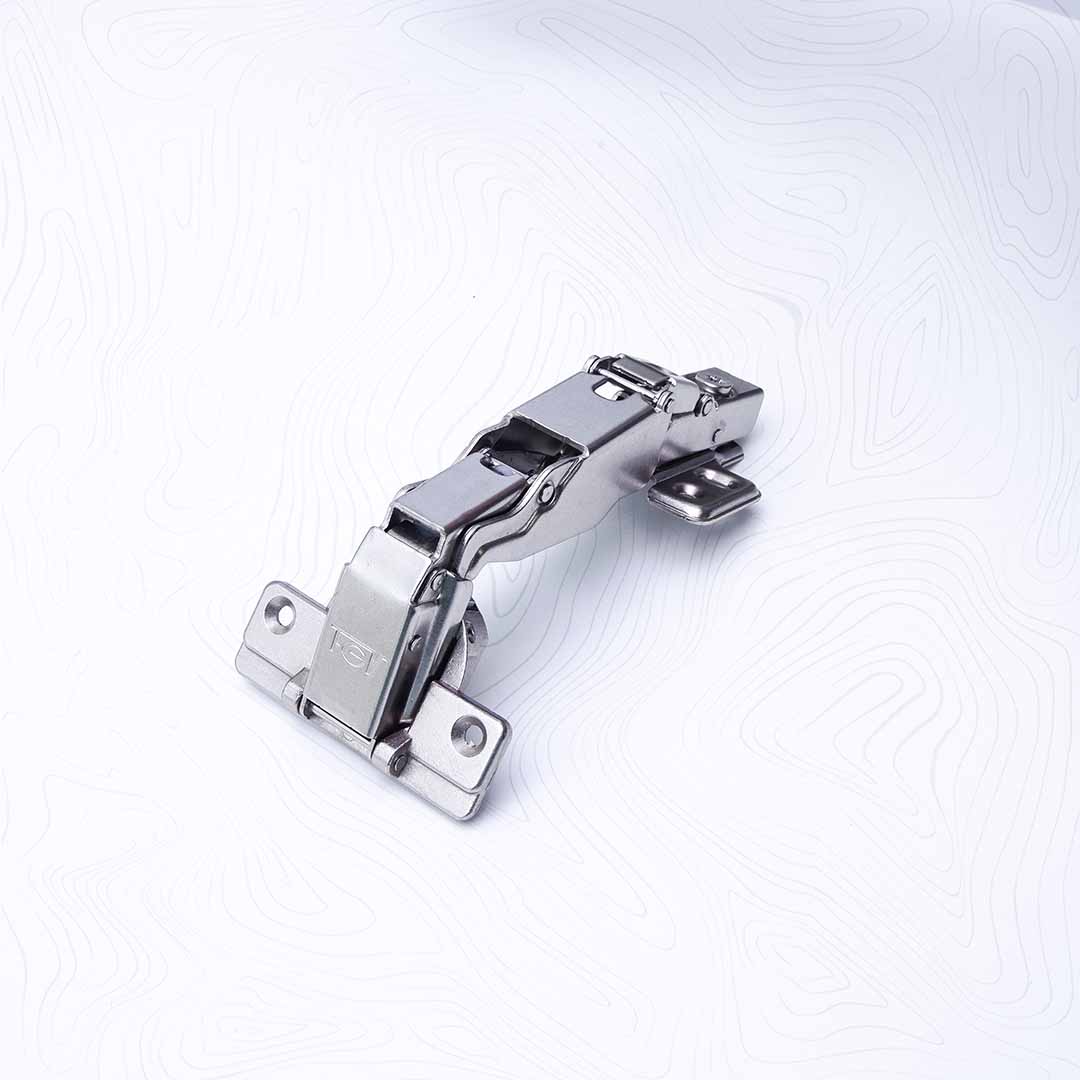

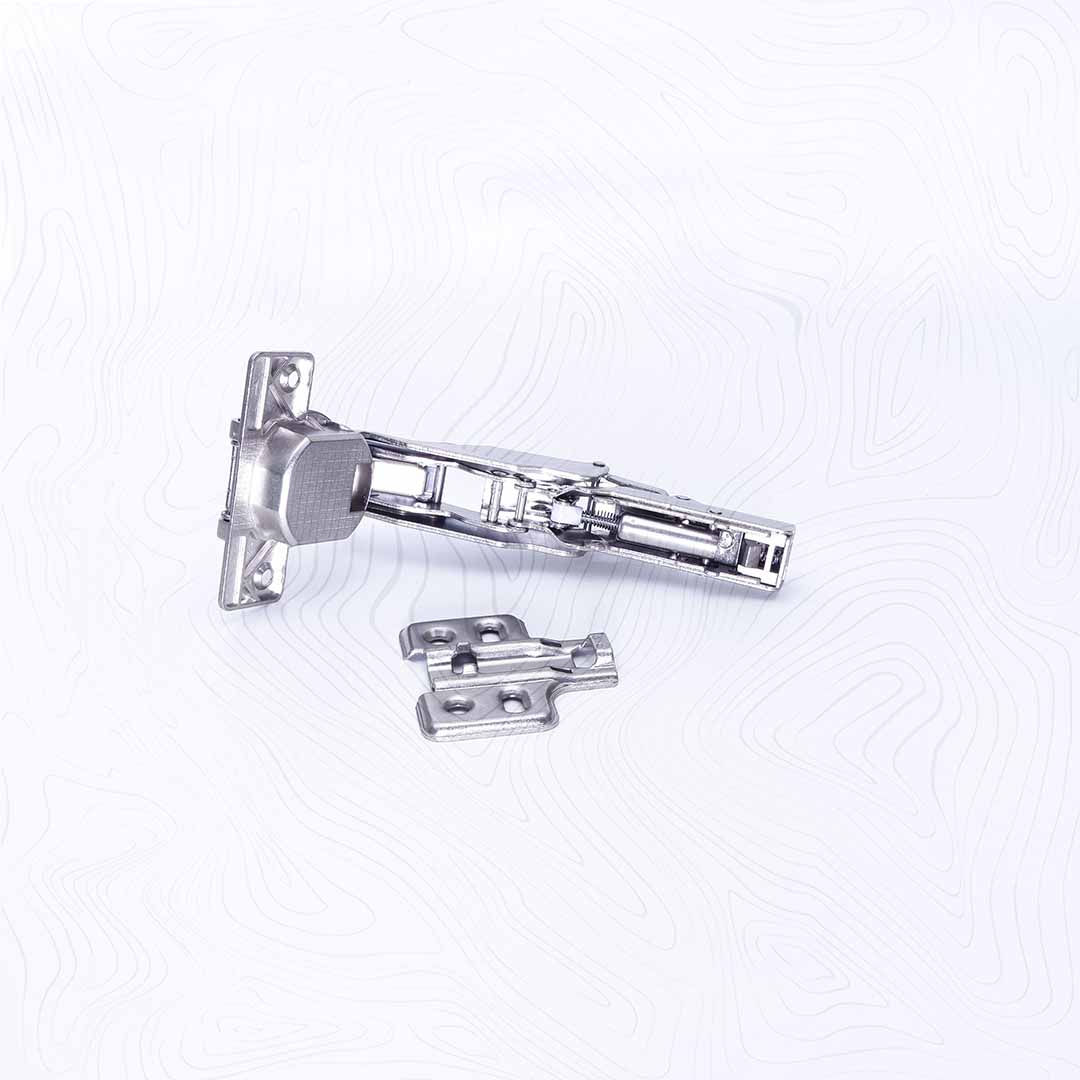

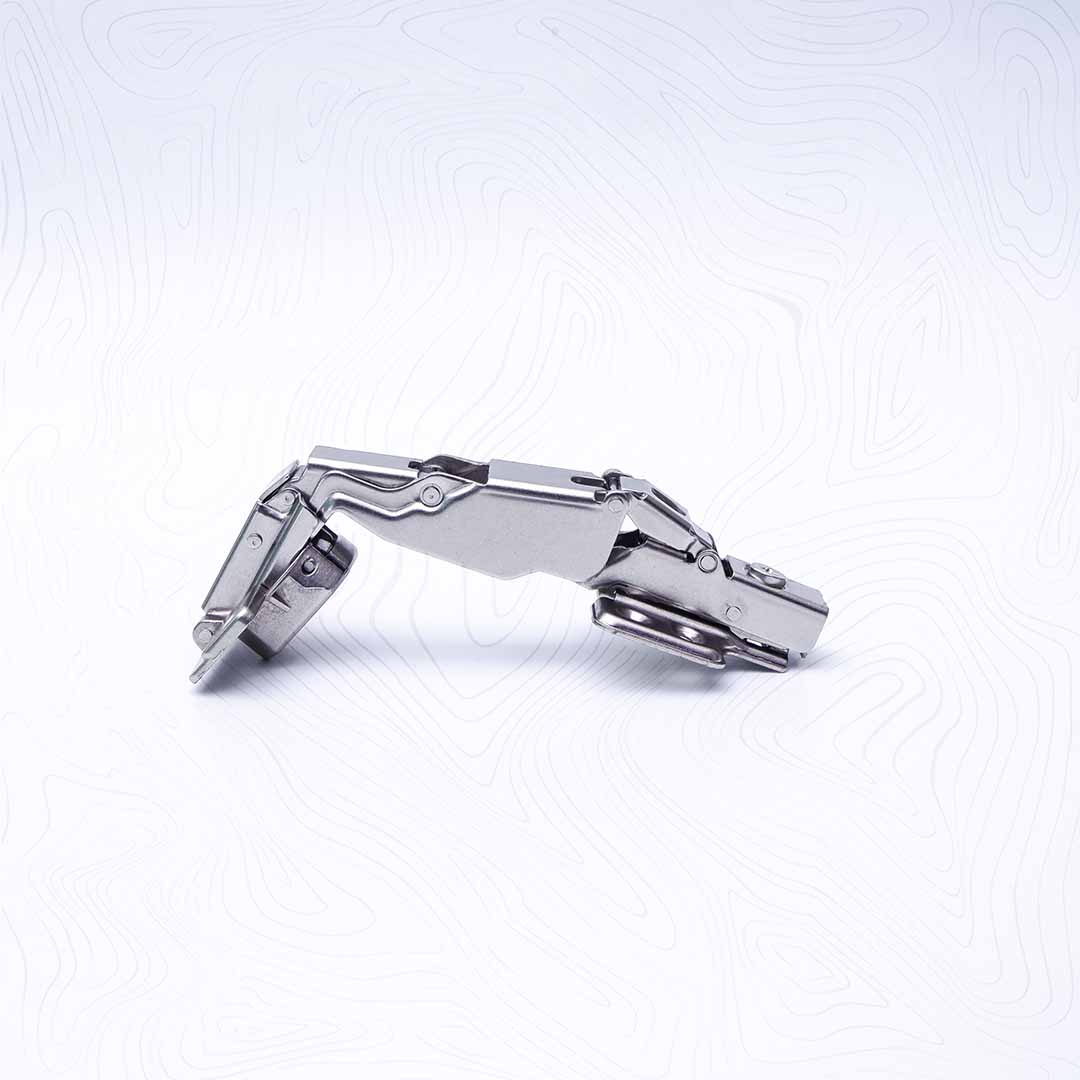

175° hinge is designed for wide opening applications. It provides maximum accessibility and is perfectly compatible for combination with corner bifold hinges. A great solution for optimizing space and functionality in modern kitchens or wardrobes.
